Framing Systems

Our 100mm profile system is designed to provide cladding support, either inside or outside the structural frame, on commercial, industrial and residential buildings.

The system can be installed with self-tapping fixtures, that enable external cladding to be attached very speedily, allowing internal construction to start. Our sections can be supplied ready to assemble on-site with all openings detailed and ready to erect.

Our factory is located in Maynooth Co.Kildare and we produce a 100mm width stud in gauges varying from 0.7mm to 2mm

We prefer to engage with your design team as early as possible to help guide you in the appropriate specification you require. We also provide the technical and documentation support you require along with onsite guidance.

We can help steer you towards approved contractors for the system that we have worked with before to provide a hassle-free installation.

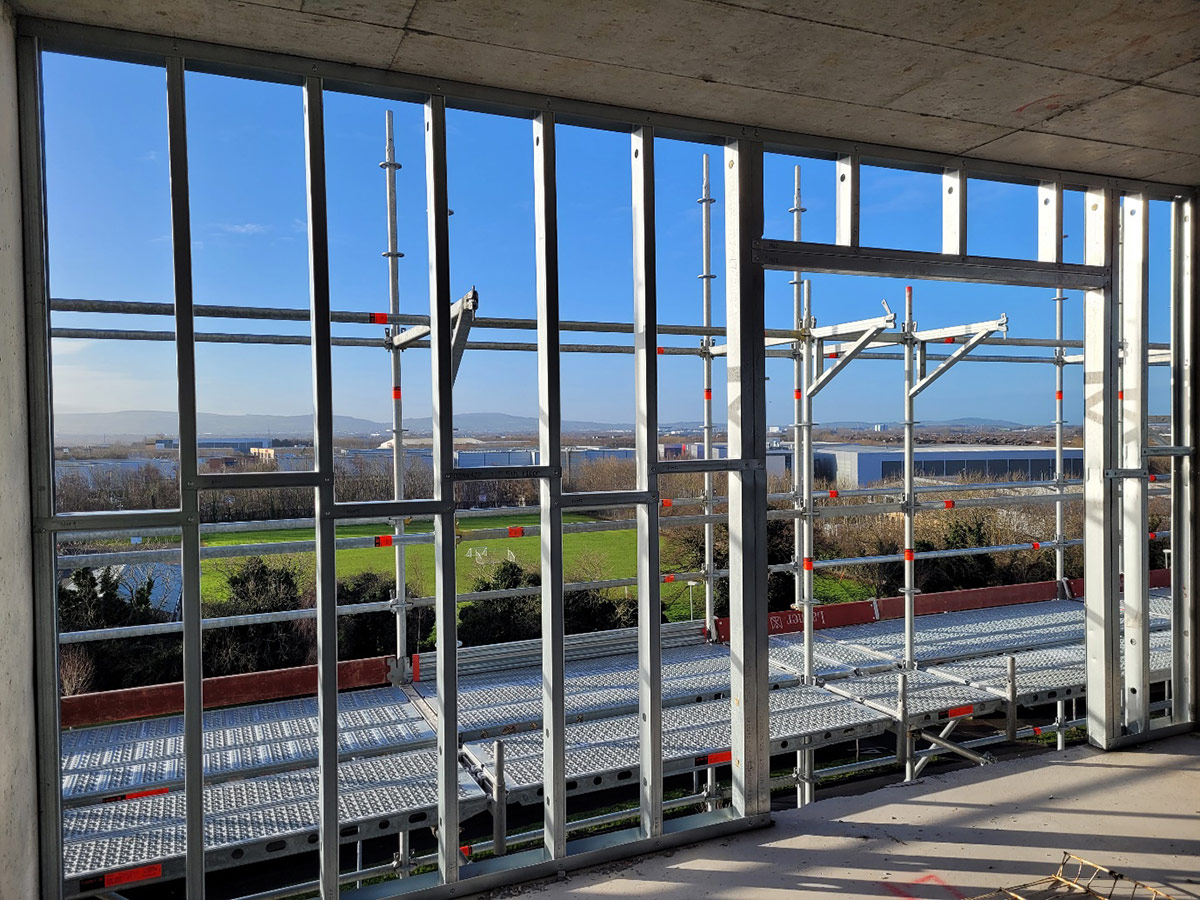

Our infill partitioning system is ideal for use in residential and commercial construction buildings where it is necessary to provide a strong non-loadbearing partitions. We can provide a wide range of gauges and heights can be accommodated up to 12 meters.


  1. The system is accurate and solid and will not move over time or with changes in weather.
  2. The system is easy to use and quick to erect as all sections fit together easily and door and window frames are formed simply.
  3. A wide range of gauges can be used to suit our 100mm stud width.


  1. Residential
  2. Student accommodation
  3. Commercial
  4. Hotels
  5. Retail

Technical details

DescriptionCodeLengthForm sizeGaugePack sizePallet size
S StudSF0012m – 4m50mm x 100mm1mm, 1.2mm, 1.5mm1050-100
U StudSF0022m – 4m75mm x 100mm1mm, 1.2mm, 1.5mm1050-100
Deflection USF0032m – 4m75mm x 100mm35mm slot1050-100
